펜슬형d:dicate™ 4006


d:dicate™ 4006

Omni Microphone


Specifications for 4006A

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency range
10 Hz - 20 kHz
Frequency range, ±2 dB
10 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz
40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 79 dB(A)
Total harmonic distortion (THD)
< 1% up to 139 dB SPL peak
Dynamic range
Typ. 124 dB
Max. SPL, peak before clipping
146 dB
Switchable attenuator, filters etc.
0 dB / -20 dB
Output impedance
200 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 60 dB
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
2.8 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Weight
163 g (5.7 oz)
Microphone diameter
16 - 19 mm (0.6 - 0.75 in)
Capsule diameter
16 mm (0.6 in)
Microphone length
170 mm (6.7 in)
Maximum output voltage, RMS
8.0 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90 %
Matching tolerance (frequency response and sensitivity)
±0.5 dB
Phase deviation for kit
< 5°

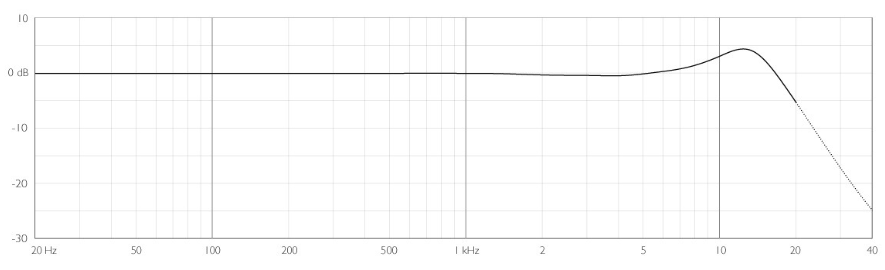

4006A Frequency response with free field grid

<Typical on and off-axis response of a d:dicate™ 4006A Omnidirectional Microphone>

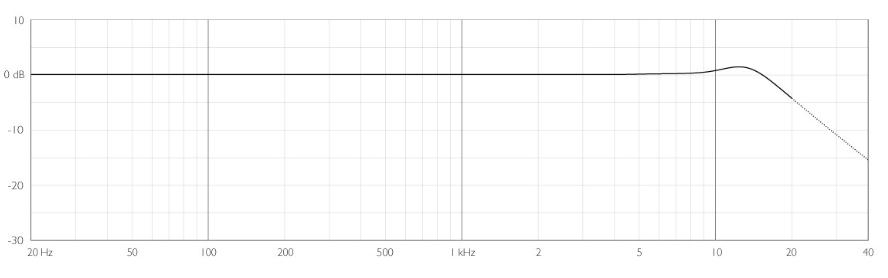

Frequency response with close miking grid

<Typical on-axis response of a 4006A with the trapezoid Close-miking Grid DD245>

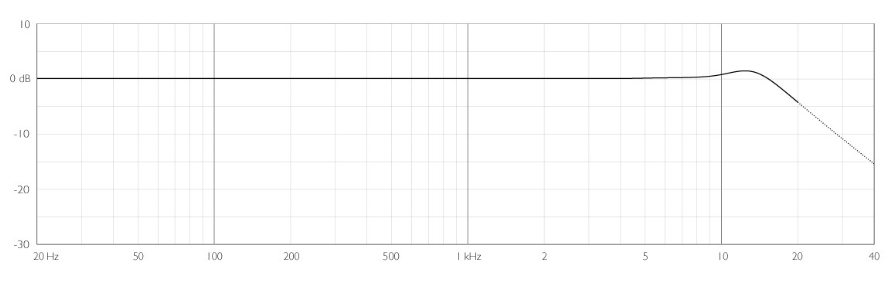

Frequency response with Diffuse field grid

<Typical on-axis response of a 4006A with the black Diffuse-field Grid DD297>


Frequency response with nose cone

<Typical on-axis response of a 4006A with Nose Cone AU0777>

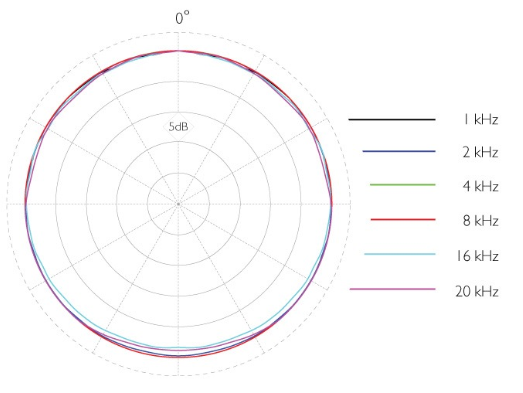

Polar pattern with free field grid

<Typical directional characteristics of a 4006A>

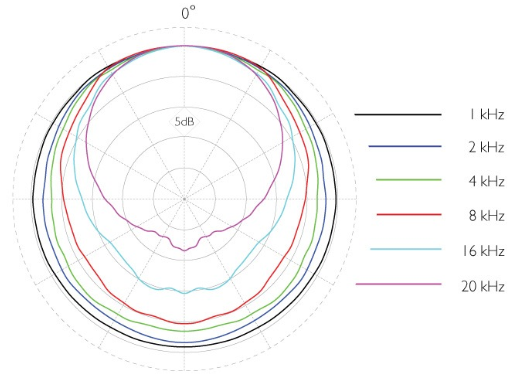

Polar pattern with close miking grid

<Typical directional characteristics of a 4006A with the trapezoid Close-miking Grid DD245 (Normalized)>

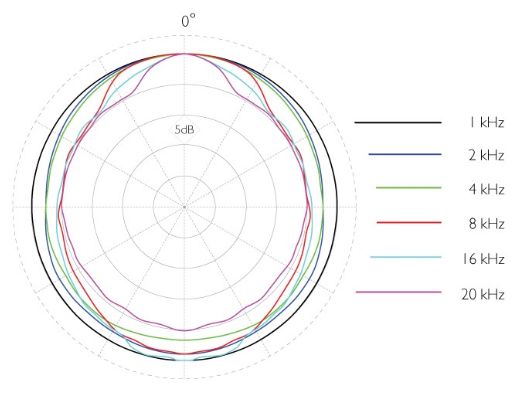

Polar pattern with diffuse-field grid

<Typical directional characteristics of a 4006A with the black Diffuse-field Grid DD297 (Normalized)>


Polar pattern with nose cone

<Typical directional characteristics of a 4006A with Nose Cone AU0777 (Normalized)>


Polar pattern with nose cone - vertical

Typical directional characteristics of a 4006A with Nose Cone AU0777, vertical microphone orientation (Normalized)



Specifications for 4006C

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency range
10 Hz - 20 kHz
Frequency range, ±2 dB
20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz
40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 79 dB(A)
Total harmonic distortion (THD)
< 1% up to 134 dB SPL peak
Dynamic range
Typ. 119 dB
Max. SPL, peak before clipping
139 dB
Output impedance
100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
2.8 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Weight
63 g (2.2 oz)
Microphone diameter
16 - 19 mm (0.6 - 0.75 in)
Capsule diameter
16 mm (0.6 in)
Microphone length
64 mm (2.5 in)
Maximum output voltage, RMS
4.5 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Matching tolerance (frequency response and sensitivity)
±0.5 dB
Phase deviation for kit
< 5°


4006C Frequency response with free field grid

Typical on and off-axis response of a d:dicate™ 4006C Omnidirectional Microphone


Frequency response with close miking grid

Typical on-axis response of a 4006C with the trapezoid Close-miking Grid DD245


Frequency response with Diffuse field grid

Typical on-axis response of a 4006C with the black Diffuse-field Grid DD297


Frequency response with nose cone

Typical on-axis response of a 4006C with Nose Cone AU0777


Polar pattern with free field grid

Typical directional characteristics of a 4006C


Polar pattern with close miking grid

Typical directional characteristics of a 4006C with the trapezoid Close-miking Grid DD245 (Normalized)


Polar pattern with diffuse-field grid

Typical directional characteristics of a 4006C with the black Diffuse-field Grid DD297 (Normalized)


Polar pattern with nose cone

Typical directional characteristics of a 4006C with Nose Cone AU0777 (Normalized)


Polar pattern with nose cone - vertical

Typical directional characteristics of a 4006C with Nose Cone AU0777, vertical microphone orientation (Normalized)
