d:dicate™ 4090
Omnidirectional Microphone
Specifications for 4090
Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB
20 Hz - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 71 dB(A)
Total harmonic distortion (THD)
< 1% up to 123 dB SPL peak
Max. SPL, peak before clipping
134 dB
Cable drive capability
Up to 300 m (984 ft)
Output balance principle
Impedance balanced
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power +/- 4 V
Microphone diameter
19 mm (0.75 in); at tip 6.7 mm (0.26 in)
Microphone length
122 mm (4.8 in)
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%

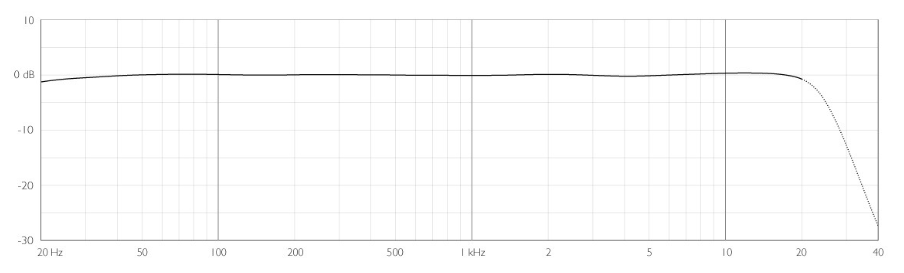

4090 Frequency response
Typical on and off-axis response of a d:dicate™ 4090

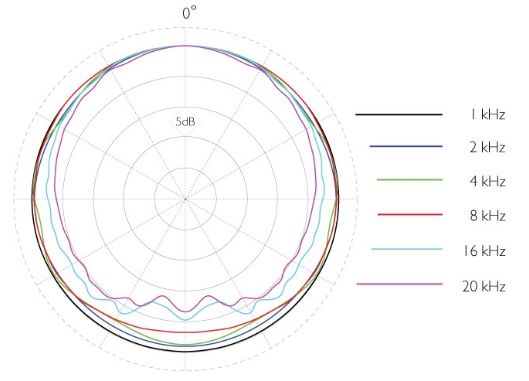

Polar pattern
Typical directional characteristics of a d:dicate™ 4090
Specifications
Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB
20 Hz - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 68 dB(A)
Total harmonic distortion (THD)
< 1% up to 123 dB SPL peak
Max. SPL, peak before clipping
144 dB
Cable drive capability
Up to 300 m (984 ft)
Output balance principle
Impedance balanced
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power +/- 4 V
Microphone diameter
19 mm (0.75 in); at tip 6.7 mm (0.26 in)
Microphone length
122 mm (4.8 in)
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%

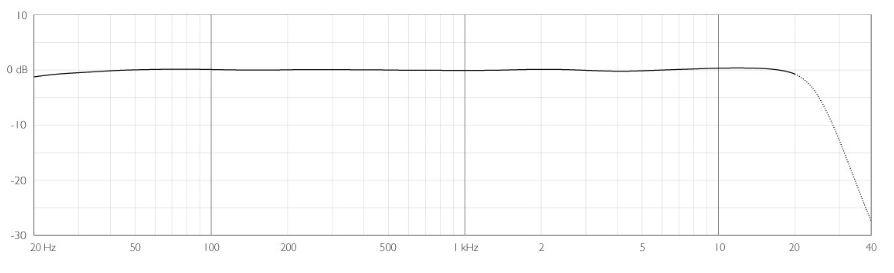

4091 Frequency response
Typical on and off-axis response of a d:dicate™ 4091

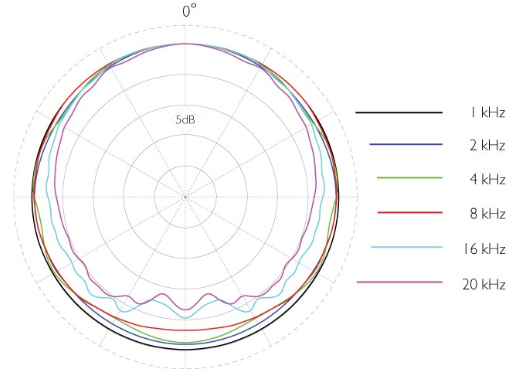

Polar pattern
Typical directional characteristics of a d:dicate™ 4091
