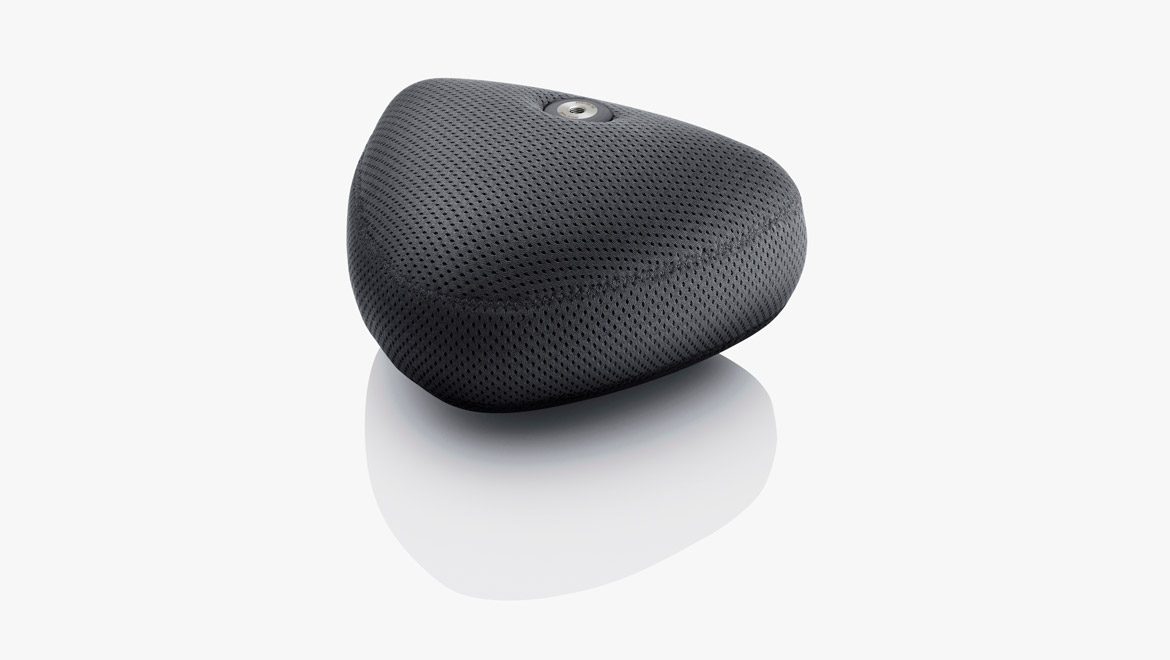

d:mension™ 5100 Mobile 5.1 Surround Mic
Specifications
Directional pattern
Directional
Principle of operation
Pressure, with interferece tube and separation baffles
Cartridge type
Pre-polarized condenser element
Frequency range
L, C, R, LS, RS: 20 Hz to 20 kHz; LFE: 20 Hz to 120 Hz
Frequency range, ±2 dB
L, C, R: 200 Hz to 16 kHz; LS, RS: 100 Hz to 12 kHz; LFE: 20 Hz to 120 Hz
Sensitivity, nominal, ±3 dB at 1 kHz
L, C, R: 26 mV/Pa; LS, RS: 28 mV/Pa
Equivalent noise level, A-weighted
L, C, R: Typ. 18 dB(A) (max. 21 dB(A)); LS, RS: Typ. 20 dB(A) (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4
L, C, R: Typ. 29 dB (max. 32 dB); LS, RS: Typ. 31 dB (max. 34 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
L, C, R: Typ. 76 dB(A); LS, RS: Typ. 74 dB(A)
Total harmonic distortion (THD)
< 1% up to 123 dB SPL peak
Dynamic range
L, C, R, LS, RS: 103 dB; LFE: 100 dB
Max. SPL, peak before clipping
132 dB
Cable drive capability
100 m (328 ft)
Output balance principle
Active Signal balanced
Common mode rejection ratio (CMRR)
60 dB, 50 Hz - 20 kHz
Power supply (for full performance)
48 V Phantom power
Current consumption
Typ. 5 mA (max. 5.5 mA)
Microphone diameter
W: 240 mm (9.4 in), H: 140 mm (5.5 in), D: 195 mm (7.7 in)
Capsule diameter
5.4 mm (0.21 in)
Cable length
5 m (16.4 ft)
Cable diameter
9.3 mm (0.37 in)
Maximum output voltage
L, C, R, LS, RS: 1,8 Vrms / 2,5 Vpeak; LFE: 1 Vrms / 1,4 Vpeak
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%

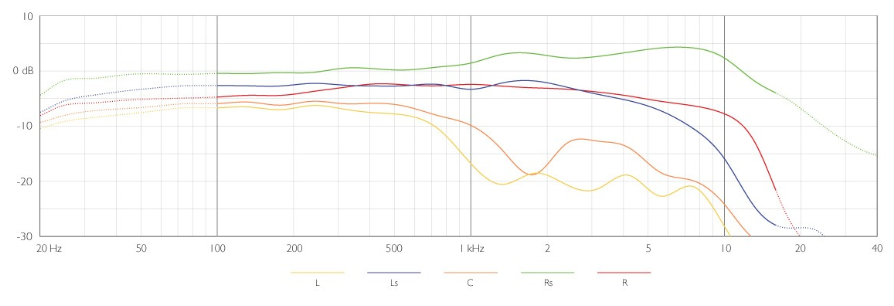

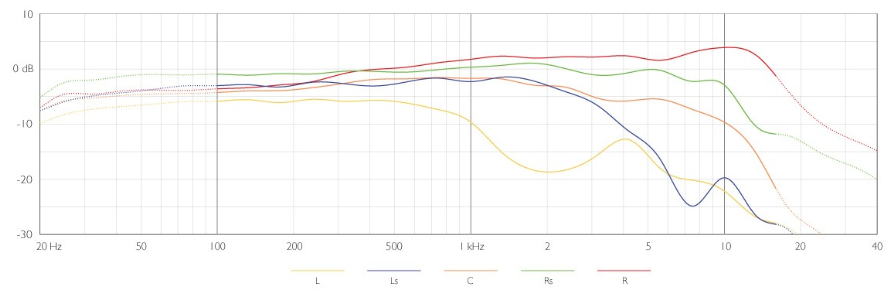

5100 Frequency response - 0 degrees
Typical frequency response of a 5100 at 0 degrees

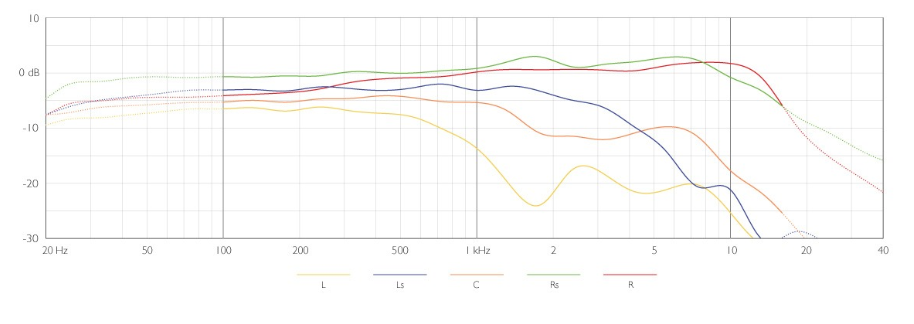

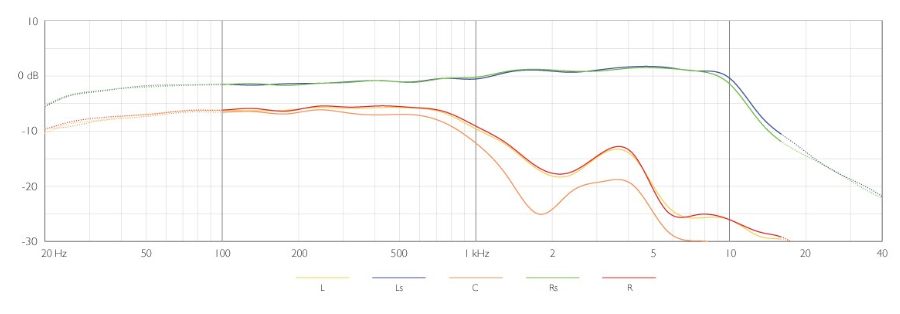

Frequency response - 30 degrees
Typical frequency response of a 5100 at 30 degrees

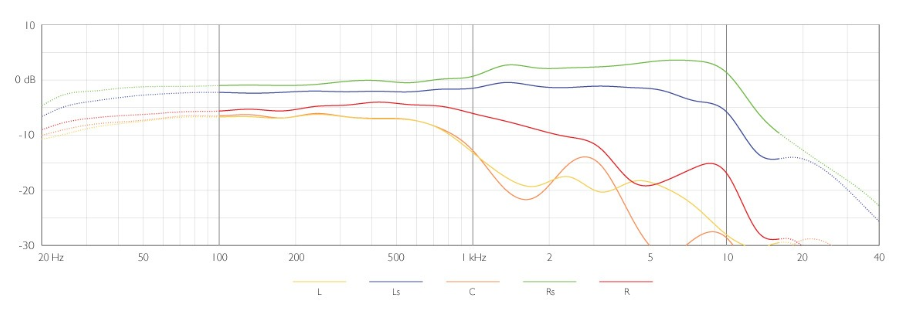

Frequency response - 60 degrees
Typical frequency response of a 5100at 60 degrees

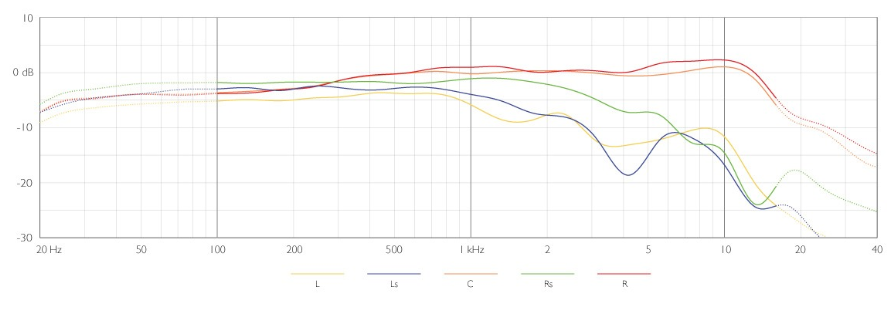

Frequency response - 90 degrees
Typical frequency response of a 5100 at 90 degrees

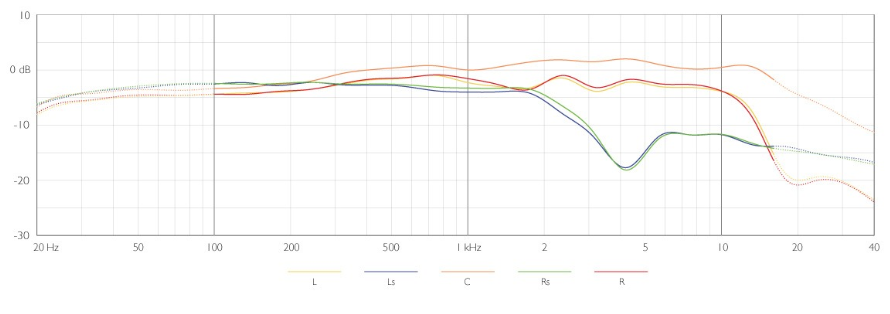

Frequency response - 120 degrees
Typical frequency response of a 5100at 120 degrees
Frequency response - 150 degrees
Typical frequency response of a 5100at 150 degrees
Frequency response - 180 degrees
Typical frequency response of a 5100at 180 degrees

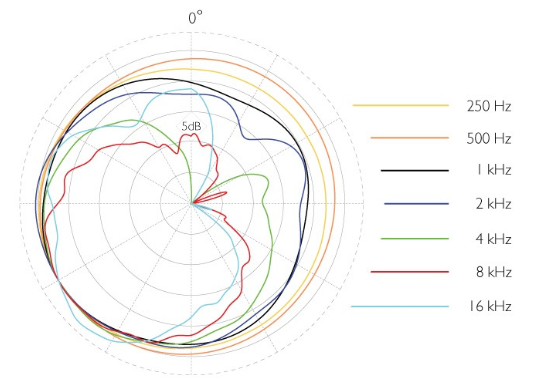

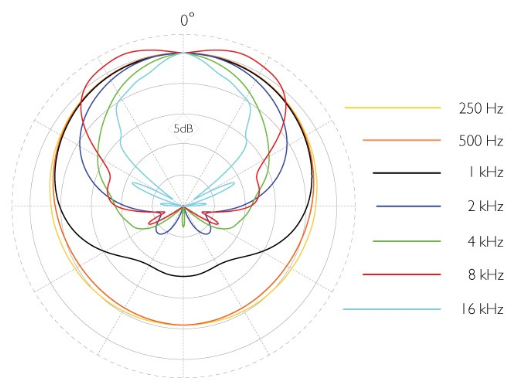

Polar pattern - center
Typical directional characteristics of a 5100 (Normalized): Center

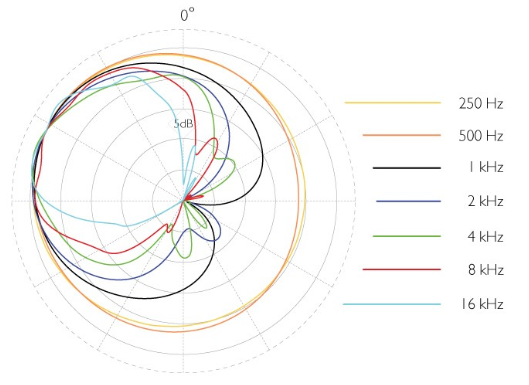

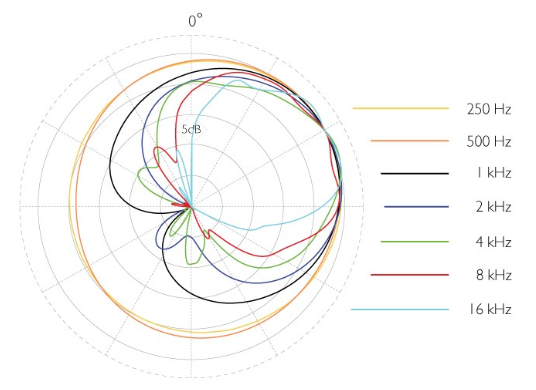

Polar pattern - left
Typical directional characteristics of a 5100 (Normalized): Left
Polar pattern - Right
Typical directional characteristics of a 5100 (Normalized): Right

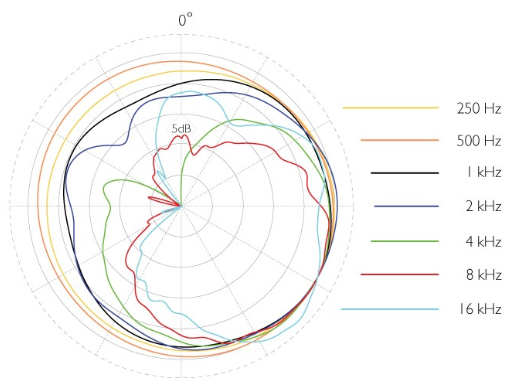

Polar pattern - left surround
Typical directional characteristics of a 5100 (Normalized): Left Surround
Polar pattern - right surround
Typical directional characteristics of a 5100 (Normalized): Right Surround
