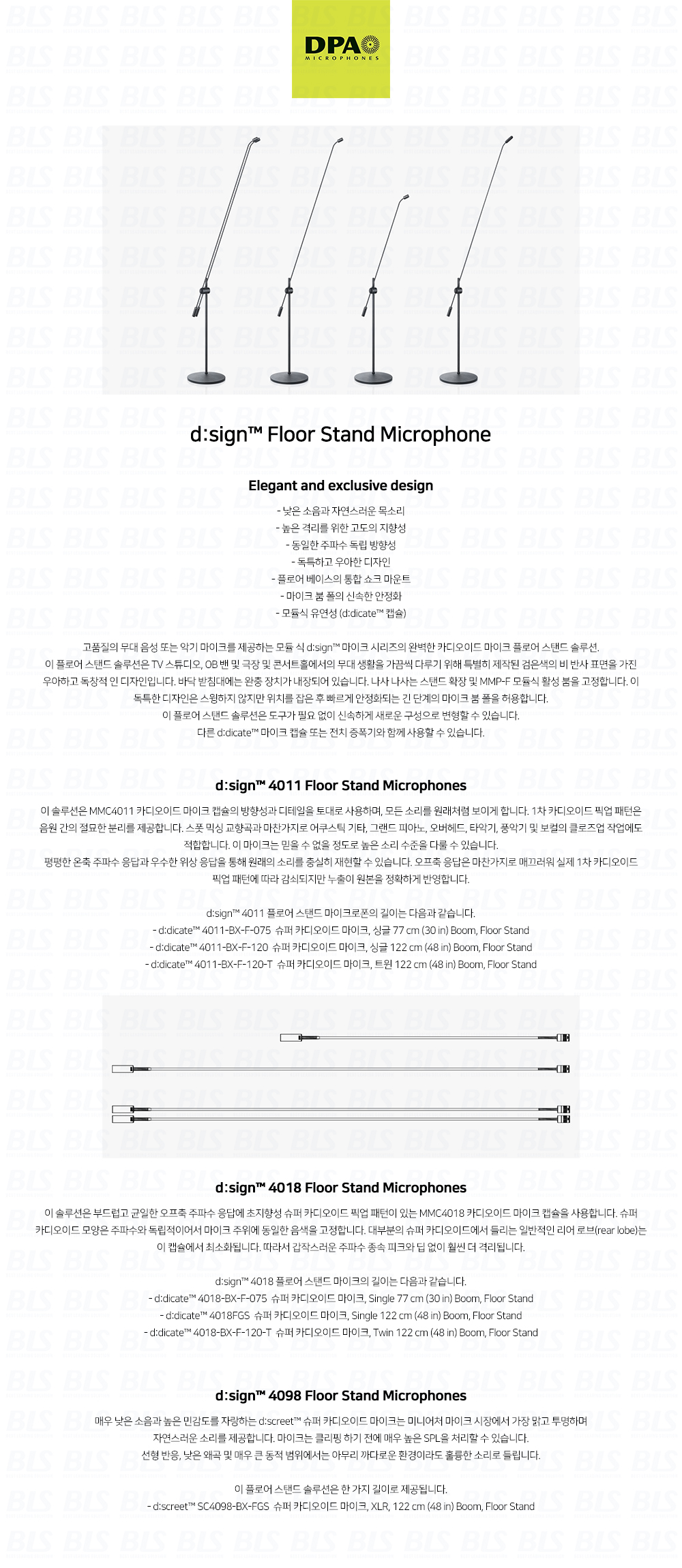

스탠드형d:sign™ 4011, 4018, 4098 플로어 스탠드


d:sign™ Floor Stand Microphone


Specifications for 4098

Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ± 2 dB, at 20 cm (7.9 in)
MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz
16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 71 dB(A)
Total harmonic distortion (THD)
< 1% up to 125 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, peak before clipping
135 dB
Output impedance
From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001 XLR Adapter: 100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
Up to 300 m (984 ft) with XLR connector or DAD6001 XLR Adapter
Output balance principle
Signal balanced with XLR connector og DAD6001 XLR Adapter
Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD6001 XLR Adapter
Power supply (for full performance)
MicroDot: Min. 5 V to max. 50 V through DPA adapter for wireless systems
or 48 V phantom power ±4 V with DAD6001-BC XLR adapter
XLR-3M: 48 V phantom power ±4 V
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001 XLR Adapter
Connector
MicroDot or XLR-3M
Color
Black or white
Weight
Microdot:
16 cm (6 in): 12 g (0.4 oz)
28 cm (11 in): 20 g (0.7 oz)
43 cm (17 in): 28 g (1.0 oz)
77 cm (30 in): 55 g (1.9 oz)
122 cm (48 in): 67 g (2.4 oz)

XLR-3M:
16 cm (6 in): 75 g (2.6 oz)
28 cm (11 in): 80 g (2.8 oz)
43 cm (17 in): 88 g (3.1 oz)
77 cm (30 in): 115 g (4.1 oz)
122 cm (48 in): 127 g (4.5 oz)
Microphone diameter
10 mm (0.4 in)
Capsule diameter
5.4 mm (0.21 in)
Microphone length
Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in).
Polarity
+V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001 XLR adapter)
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%

4098 Frequency response

Typical on and off-axis response of a d:sign™ 4098



Polar pattern

Typical directional characteristics of a d:sign™ 4098




Specifications for 4011

Directional pattern
Cardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)
40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 25 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 76 dB(A)
Total harmonic distortion (THD)
< 1% up to 139 dB SPL peak
Dynamic range
Typ. 121 dB
Max. SPL, peak before clipping
144 dB
Output impedance
100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
3.5 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Microphone diameter
19 mm (0.75 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
Maximum output voltage, RMS
2.2 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Matching tolerance (frequency response and sensitivity)
±1 dB
Phase deviation for kit
< 10°


4011A Frequency response

Typical on and off-axis response of a d:sign™ 4011



4011A Polar pattern

Typical directional characteristics of a d:sign™ 4011




Specifications for 4018

Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)
40 Hz - 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 23 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 78 dB(A)
Total harmonic distortion (THD)
< 1% up to 137 dB SPL peak
Dynamic range
Typ. 121 dB
Max. SPL, peak before clipping
142 dB
Output impedance
100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
3.5 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Microphone diameter
19 mm (0.75 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
Maximum output voltage, RMS
2.2 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Matching tolerance (frequency response and sensitivity)
±1 dB
Phase deviation for kit
< 10°



4018A Frequency response

Typical on and off-axis response of a d:sign™ 4018


Polar pattern

Typical directional characteristics of a d:sign™ 4018
