d:sign™

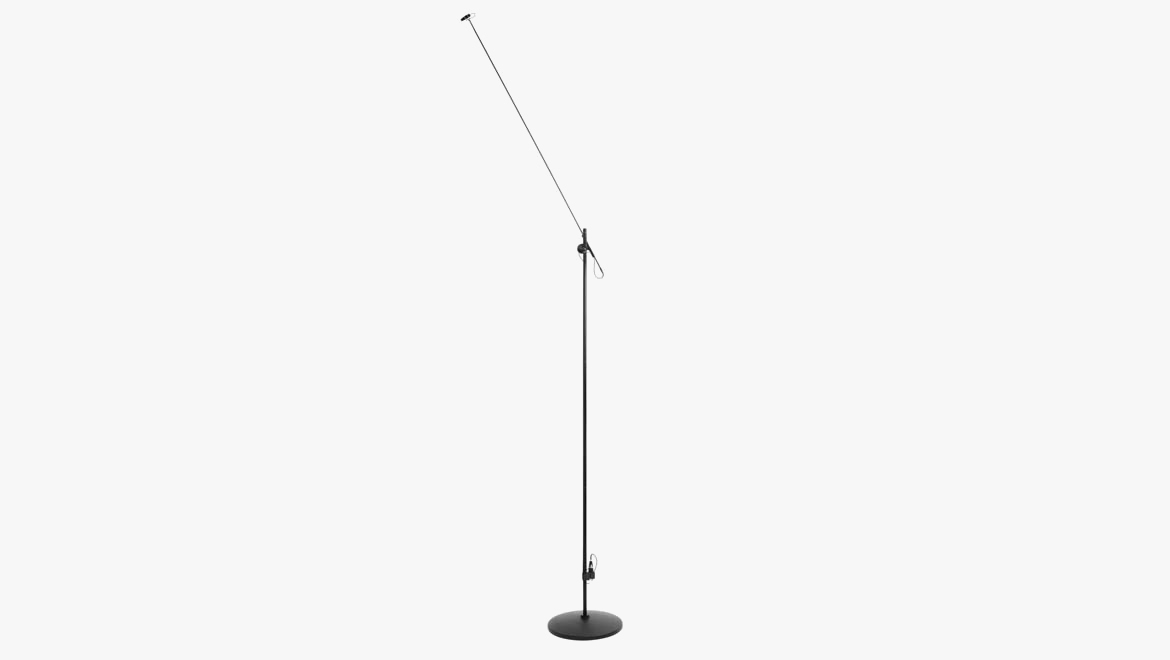

4097 CORE Supercardioid Choir Mic




Specifications

Directional pattern
Supercardioid
Effective frequency response
20 Hz - 20 kHz
Frequency range, ± 2 dB, at 20 cm (7.9 in)
80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099
Sensitivity, nominal, ±3 dB at 1 kHz
16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max 26 dB(A))
Total harmonic distortion (THD)
<1 % up to 133 dB SPL peak
Dynamic range
Typ. 110 dB
Max. SPL, peak before clipping
135 dB
Connector
MicroDot. XLR via supplied DAD4099 adapter
Color
Black
Weight
Total: 5.1 kg (180 oz). Round Base: 4.4 kg (155 oz)
Maximum Total Height
253 cm (100 in)




4097 Frequency response

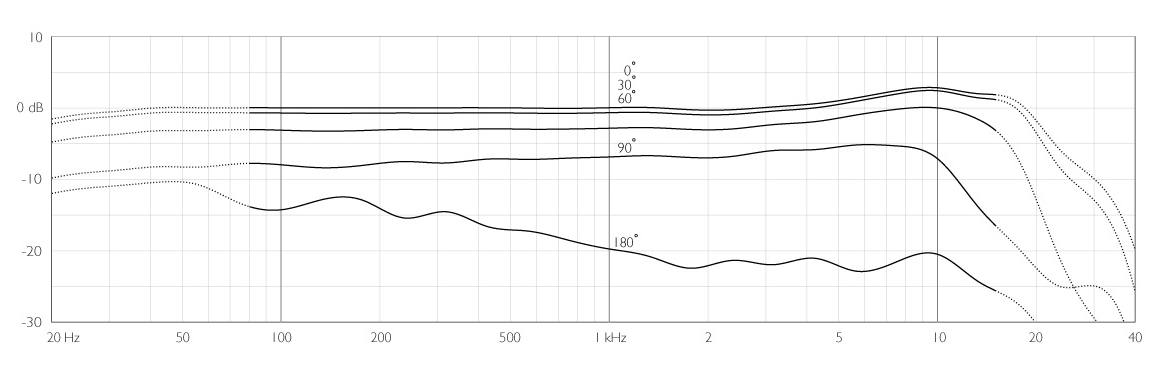

'Typical on and off-axis response of a d:sign™ 4097 microphone measured at 20 cm (7.9 in).




4097 Frequency response

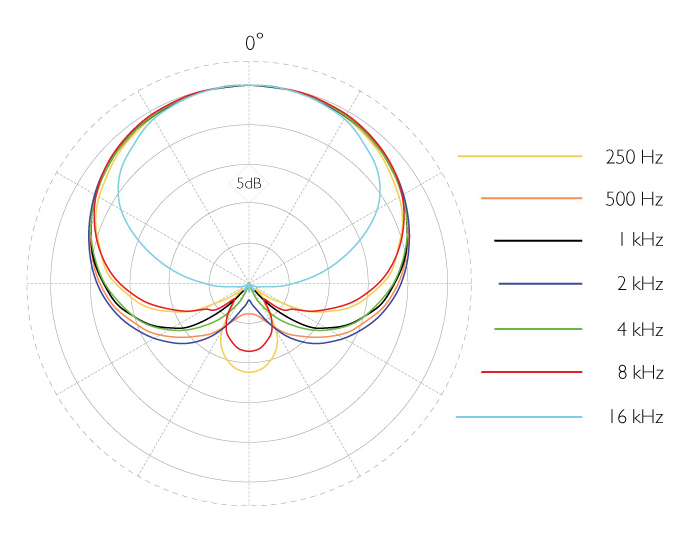

Typical directional characteristics of a d:sign™ 4097
