헤드셋/이어셋d:fine™ 6066

DPA

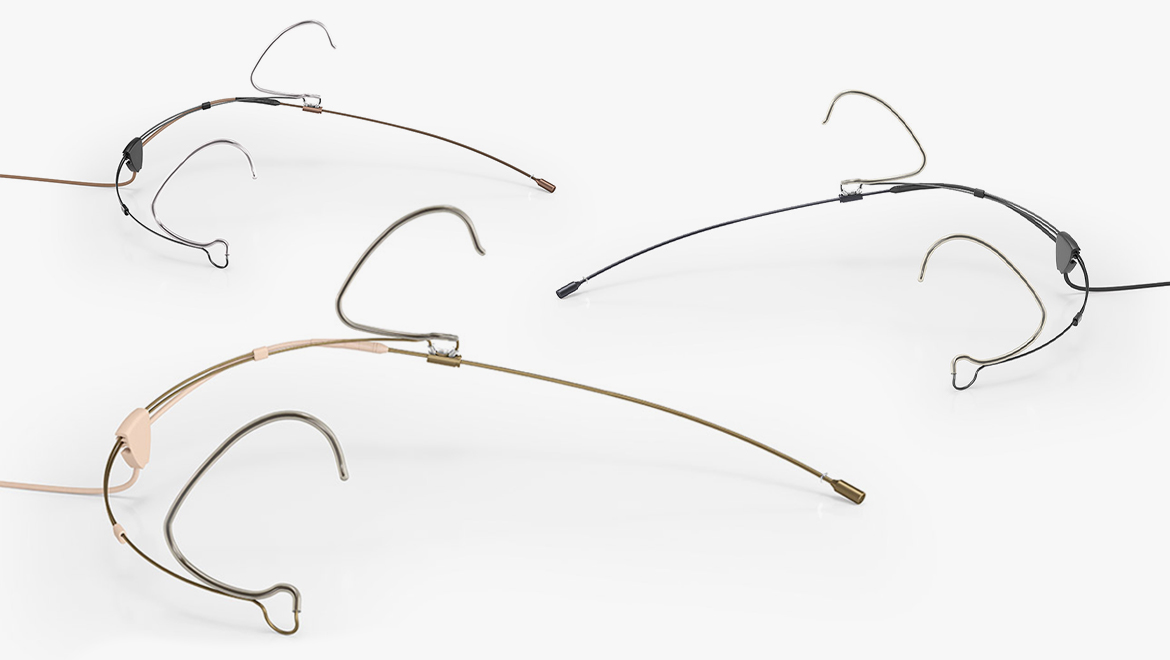

d:fine™ 6066

Subminiature Headset Microphone

Specifications

Directional pattern

Omnidirectional

Principle of operation

Pressure

Principle of operation

Pre-polarized condenser

Frequency range

20 Hz - 20 kHz

Frequency range, ±2 dB

40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

Typ. 68 dB(A)

Total harmonic distortion (THD)

< 1% up to 128 dB SPL peak

Dynamic range

Typ. 102 dB

Max. SPL, peak before clipping

144 dB

Output impedance

From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω

Cable drive capability

Up to 300 m (984 ft) with DAD6001-BC XLR adapter

Power supply (for full performance)

Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

Connector

MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Color

Black or beige

Weight

11 g (0.40 oz) incl. Cable and MicroDot connector

Microphone head size (h x w x d)

3.4 / 8.9 mm (0.13 / 0.35 in)

Capsule diameter

3 mm (0.12 in)

Cable length

1.3 m (4.3 ft)

Polarity

Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

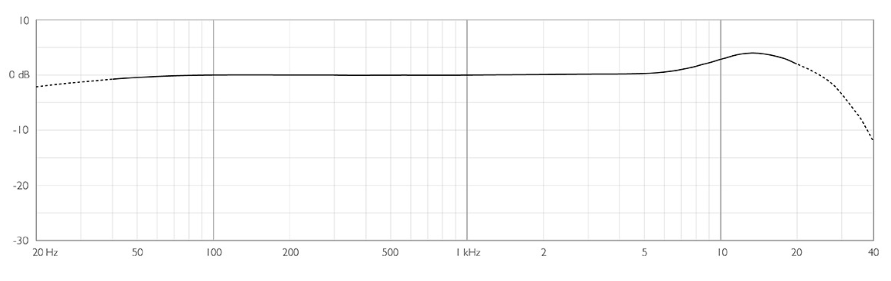

6066 Frequency response
