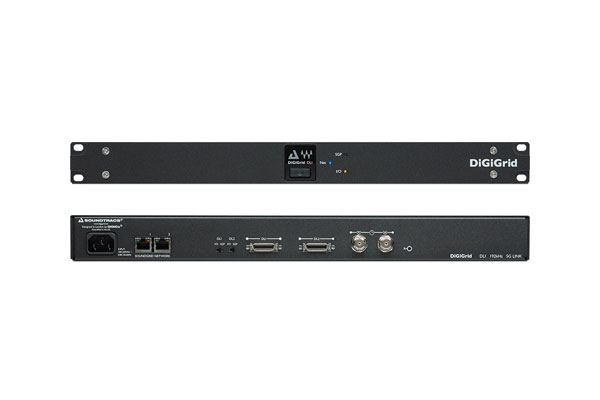

DiGiGrid DLI has two modes, I/O and SGP:

• In I/O mode, DLI bridges your Pro Tools system with DiGiGrid I/Os and SoundGrid DSP servers. The Pro Tools system (HD/HDX or HD Native) continues to be your playback engine, while DLI appears as individual I/Os from which you can expand your studio: just connect additional DiGiGrid I/Os and offload your plugin processing to additional SoundGrid servers.
• In SGP mode, DLI bridges the DAW of your choice (Logic, Cubase, Nuendo, Ableton, Pro Tools Native, etc.) with SoundGrid applications and ASIO/Core Audio drivers, lets you control various DigiLink-compatible I/Os, and enables you to use a SoundGrid server to which you can offload your plugin processing.

In both modes, a single Cat 5e or Cat 6 Ethernet cable will enable you to connect your system to additional DiGiGrid I/Os.

Specifications

• 2 DigiLink ports; 64 channels in either SGP or I/O mode (32 channels per port). Compatible with the following DigiLink-enabled I/Os: Digi192, Digi96, HD Omni, HD I/O, Apogee Symphony I/O, Lynx Aurora 8, Lynx Aurora 16.
  • I/O mode: DLI acts as an interface connected to HD Core, HD Accel, HDX or HD Native cards; supports Pro Tools TDM 10.x and 11.x
  • SGP mode: DLI acts as a controller for DigiLink-enabled I/Os
• 2 SoundGrid RJ45 Ethernet ports
• 1 AC input
• 1 Word Clock/Loop Sync I/O
• 1 USB port
• 1U rackmount
• Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
• Recovery switch
• Clocking options: Word Clock/Loop Sync, SoundGrid (SoE), or DigiLink
